【板级EDA】【PCB设计】Warning：Multiple connections connot bet be established between two graphs, please try to delete the connection of pin (*,*) or pin (**,**)
日期: 2026-03-04
分类: 解决方案类
│问题描述

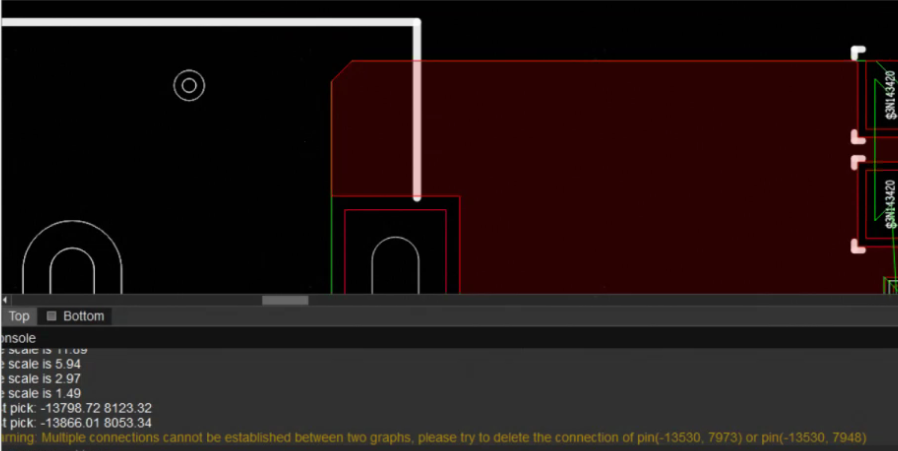

当给铜皮赋予网络时报如下错误：
Warning：Multiple connections connot bet be established between two graphs, please try to delete the connection of pin (*,*) or pin (**,**)
│根因

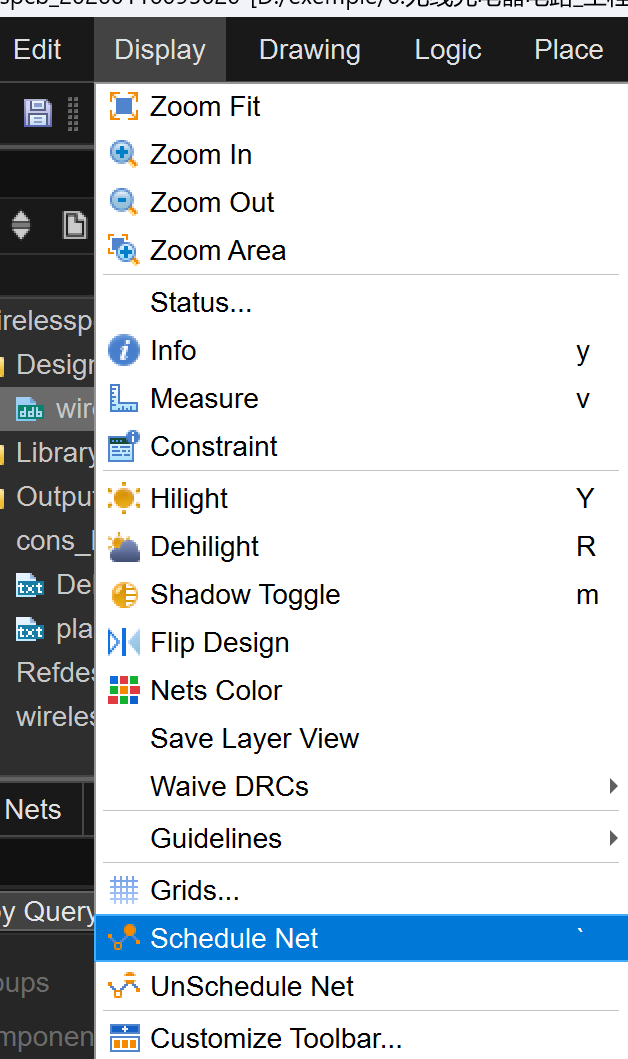

使用schedule net 功能点击了pin
│解决方案

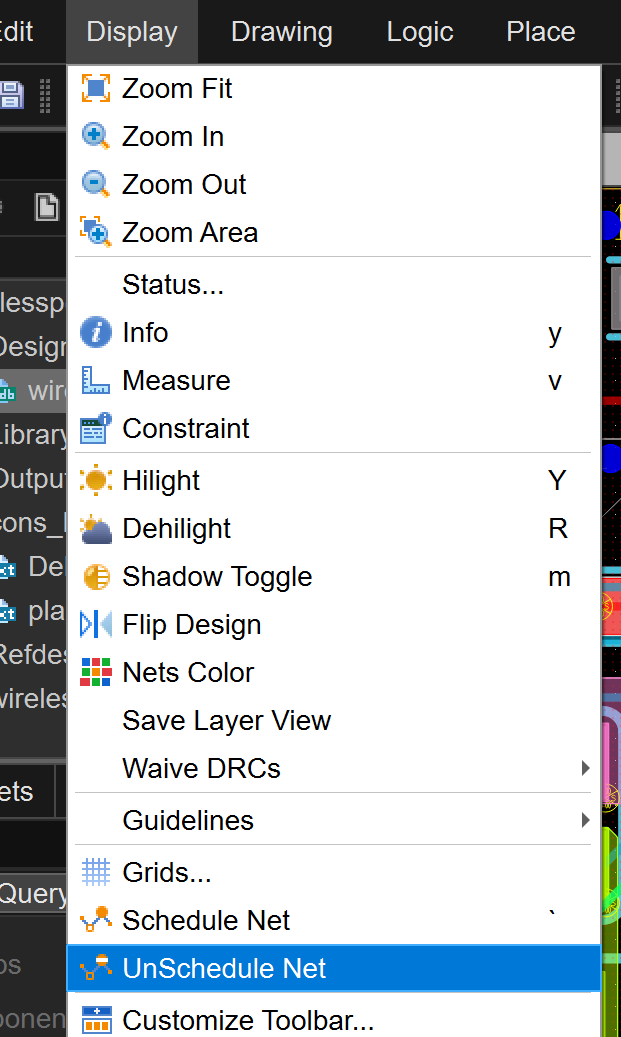

使用unschedule net功能点击一下对应的铜皮即可
